CHOOSING THE RIGHT MODEL
QUICKJACK BL-3500SLX
The BL-3500SLX is perfect for lighter vehicles such as compact cars and small sedans. With a lifting capacity of 3,500 lbs / 1,588 kg. this model provides the ideal balance of power and portability. Its compact size makes it easy to store and transport, ensuring you can take it anywhere your car goes.
QUICKJACK 6000 series – (replaces the 5000TL and 5000TLX from June 2026)
The new QuickJack 6000 series is designed for use in home garages, shops, and at the track. Offering a maximum lifting capacity of 6,000 lbs. / 2,721 kg. This makes both the 6000TL and 6000TLX ideal for SUV’s, utes, light-duty trucks, and modern electric vehicles. The 6000TLX is for extended-wheelbase vehicles with manufacturer-recommended lift points just beyond the reach of standard-length lifts.
QUICKJACK 7000TL – (being replaced by the 8000TL)
The BL-7000TL is built for heavier vehicles, including trucks and larger SUVs. With a lifting capacity of 7,000 lbs, / 3,175 kg. this model is the go-to choice for those who need to lift larger, more substantial vehicles safely and efficiently. Its sturdy construction ensures maximum stability and durability.
QUICKJACK 8000 series – (replaces the 7000TL and 7000TLX from June 2026)
The new QuickJack 8000 series featuring the standard 8000TL and extended-length 8000TLX is the heaviest-duty portable vehicle lift from BendPak. Designed and engineered to handle heavy trucks, large 4WD’s, SUV’s and extended-wheelbase vehicles, offering an impressive maximum 8,000 lbs. / 3,630 kg lifting capacity. It replaces the older 7000 series models, and represents the heaviest-duty portable vehicle lifts in the QuickJack lineup, offering an extra 1,000 lbs / 454 kg of muscle.
Which QUICKJACK Model Should I Purchase?
First, it’s up to you to measure your vehicle and wheelbase by clicking on the easy to follow MEASURING GUIDE instructions button (see below) which will assist you in clearly identifying the model that best fulfills your needs.
Measuring takes about five minutes and really helps ensure the right model is selected and delivered to your door.
Then browse our collection of QUICKJACK MODELS and select the model that best suits your vehicle and maintenance requirements.
“Elevate your automotive maintenance experience with QuickJack – the trusted name in portable car lifts”

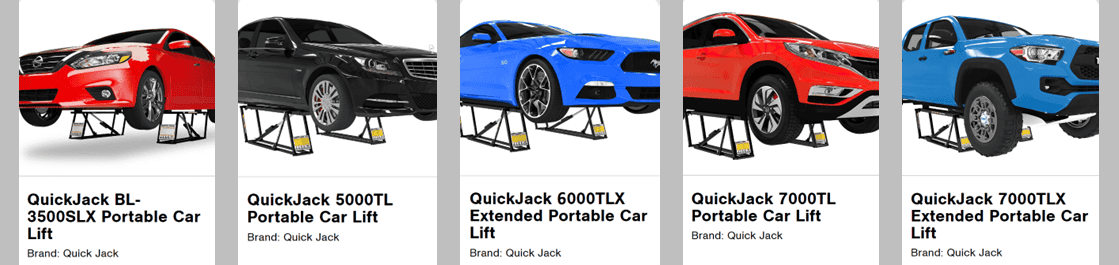

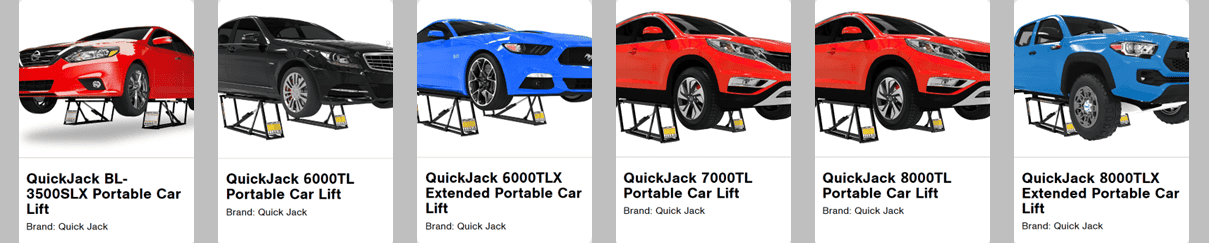

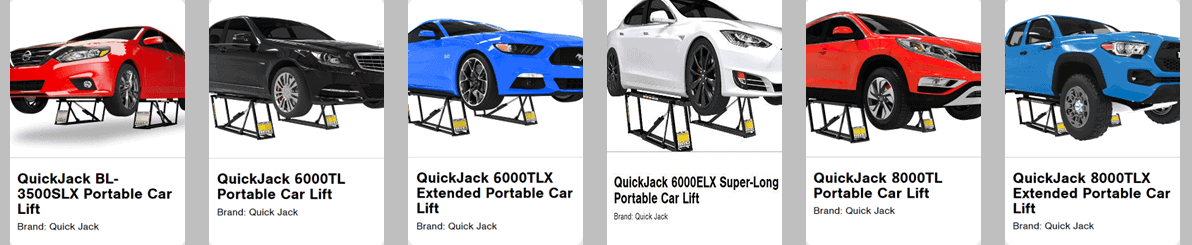

QUICKJACK MODELS – Description & Specifications:
-
3500SLX
-
6000TL
-
6000TLX
-
7000TL
-
8000TL
-
8000TLX
The 3,500-lb. capacity BL-3500SLX car lift is perfect for lighter small-wheelbase vehicles such as compact cars and small sedans.
As the lightest model in our lineup, its frames are easy to transport in and out of the garage or wherever else you need to work. Have fun wrenching at home, and shave off seconds at the track.
Its compact size makes it easy to store and transport, ensuring you can take it anywhere your car goes.
Specifications
| Lifting capacity |
|
|---|---|
| Lowered height |
|
| Lifting height |
|
| Lift point spread |
|
| Frame dimensions (ea.) |
|
| Other specs |
|
6000TL Portable Car Lift System
QuickJack has raised the bar once again with the upgraded 6000TL portable car lift, engineered for greater strength, enhanced lifting capacity, and quicker setup. Building on the popularity of its predecessor, the new 6000TL now lifts up to 6,000 lbs. / 2,722 kg with confidence and ease, making it the ideal car lift for your home garage, track days, or professional auto repair shop.
Thanks to a completely redesigned electric/hydraulic power unit featuring a pressure-compensated flow divider, both frames lift and lower in perfect sync. Reinforced structural elements including thicker cross members, improved weld geometry, and upgraded pivot joints ensure rigidity and alignment under heavier loads. With a lift height of 24 inches / 610mm, the QuickJack 6000TL gives you ample clearance to handle nearly any vehicle maintenance task, without sacrificing the compact dimensions you need.
What’s improved on the NEW TL Models vs. previous TL Models?
The 6000TL offers significant upgrades over the outgoing 5000TL model, including a boosted lifting capacity up from 5,000 lbs. to 6,000 lbs. without increasing the frame dimensions. The improved hydraulic system ensures smoother, safer lifting, while structural enhancements provide unmatched durability and stability under load.
Despite these upgrades, QuickJack maintains its famously slim profile, retaining the convenient 3-inch collapsed height, 70-inch frame length, and 11-inch frame width. This allows easy storage and maneuverability in tight spaces, making it an essential tool for garages where space is at a premium.
What Warranty Coverage Is Included With TL models?
Factory Preassembled Hydraulics
Every QuickJack 6000TL comes with its hydraulic system fully preassembled at the factory. This thoughtful upgrade saves setup time and guarantees optimal lift performance right out of the box, getting you up and running in minutes.
Automatic Safety Locks
The 6000TL features updated dual-position automatic safety locks on each frame. As the frames lift your vehicle, the locks securely engage at mid-rise and full-rise positions automatically. Release is effortless – simply flip the lock bar, and your portable car lift safely lowers your vehicle smoothly.
Enhanced Lifting Height & Capacity
The QuickJack 6000TL portable car lift now lifts vehicles weighing up to 6,000 lbs., providing an impressive 24-inch lifting height. Structural enhancements—including thicker cross members, improved weld geometry, and upgraded pivot joints—offer greater durability and stability under heavier loads, giving you enhanced capability, versatility, and comfort when working underneath your vehicle.
One-Handed Operation & Synchronized Lifting
Operate the QuickJack effortlessly using the convenient pendant control with one hand, leaving your other hand completely free. The reengineered electric/hydraulic power unit features a pressure-compensated flow divider, ensuring synchronized lifting and lowering for smoother, safer performance every time.
Accessories For Expanded Versatility
QuickJack’s extensive accessory lineup, compatible with the 6000TL, includes frame extensions, adapters, and even kits for motorcycles and ATVs. Designed based on customer feedback and real-world use, these accessories allow you to fully customize your portable car lift experience to match your exact needs.
Compact Design For Easy Storage
Despite its robust lifting capacity and strengthened construction, the 6000TL maintains QuickJack’s signature compact footprint. Durable urethane wheels provide effortless mobility, allowing you to easily move and store your lift even in limited garage spaces.
What’s Included
- 6000TL Left & Right Frame Assemblies
- Hydraulic Power Unit with Pendant Control
- 4x Medium Rubber Lift Blocks (2″)
- 4x Tall Rubber Lift Blocks (3″)
- 2x Short Hydraulic Hoses
- 2x Long Hydraulic Hoses
- 2x Frame-Positioning Handles
- Fittings, Thread Tape, & Setup Instructions
Product Specifications
6000TLX Portable Car Lift System
The QuickJack 6000TLX portable car lift is the ultimate solution for lifting longer-wheelbase vehicles, offering an extended 76-inch frame and a boosted lifting capacity of up to 6,000 lbs. This makes the 6000TLX ideal for SUVs, light-duty trucks, and vehicles with manufacturer-recommended lift points just beyond the reach of standard-length lifts.
The new 6000TLX (replaces the 5000TLX) delivers significant improvements, including increased lifting capacity (up from 5,000 lbs. to 6,000 lbs.), structural enhancements, and an upgraded hydraulic system for safer, smoother, and faster lifting. Despite these improvements, QuickJack maintains the 3″ low-profile height that customers love for easy storage and maneuverability.
Engineered with a newly redesigned electric/hydraulic power unit featuring a pressure-compensated flow divider, the 6000TLX lifts and lowers in perfect synchronization. Structural upgrades include thicker cross members, enhanced weld geometry, and reinforced pivot joints, delivering unmatched stability and durability. Whether you’re in a professional auto repair shop or your home garage, the 6000TLX provides ample clearance, reliability, and versatility for all your automotive tasks.
The setup for the QuickJack 6000TLX remains simple and intuitive, featuring automatic dual-position safety locks, a quick 30-second lift cycle, and a user-friendly one-handed pendant control. Although the 6000TLX frame extends an additional 6 inches, it maintains QuickJack’s signature slim profile for easy storage. Measure your vehicle’s wheelbase carefully to ensure optimal fit – especially important for compact or very short wheelbase vehicles.
Extended-Length Portable Car Lift Design
The QuickJack 6000TLX is specifically engineered to accommodate vehicles requiring a longer lift point reach. The increased frame length and lift point spread offer unmatched flexibility for servicing a broader range of vehicles.
TLX minimum lift point spread: 43″ / TLX maximum lift point spread: 66″ / TLX overall frame length: 76″
What’s improved on the NEW TLX Models vs. previous TLX Models?
The new 6000TLX delivers significant improvements, including increased lifting capacity (up from 5,000 lbs. to 6,000 lbs.), structural enhancements, and an upgraded hydraulic system for safer, smoother, and faster lifting. Despite these improvements, QuickJack maintains the 3″ low-profile height that customers love for easy storage and maneuverability.
Factory preassembled hydraulics
The 6000TLX arrives with its hydraulic system fully preassembled at the factory, eliminating setup headaches and ensuring flawless performance right out of the box. Just connect and start lifting.
Automatic safety locks
The 6000TLX features dual-position automatic safety locks that engage securely as the frames rise—locking in at both mid-rise and full-rise heights. To lower, simply flip the lock bar and enjoy a smooth, controlled descent every time.
Increased lifting height & extended reach
With a 24-inch lift height and an extended 76-inch frame, the 6000TLX offers additional clearance and reach for vehicles with longer wheelbases. Great for lifting cars, light-duty trucks, and SUVs with wide lift point spreads.
Upgraded hydraulic system
The newly engineered power unit features a pressure-compensated flow divider and independent shut-off solenoids. This ensures synchronized frame movement and eliminates the risk of imbalance, even when stopping mid-cycle.
Structural reinforcements
Thicker cross members, improved weld geometry, and upgraded pivot joints improve frame rigidity under heavy loads, reduce flex, and increase long-term durability—essential for repeated use on heavier vehicles.
One-handed operation
The pendant control allows you to raise and lower your portable car lift with just one hand. No manual cranking, bending, or extra tools required—just push a button and go.
Compact and mobile
Despite its extended size, the 6000TLX maintains QuickJack’s trademark low profile and portability. Urethane wheels let you roll and stow the lift easily, making it perfect for tight garage spaces or mobile service work.
Accessories to increase versatility
Compatible with all major QuickJack accessories, including SUV adapters, pinch-weld blocks, and motorcycle/ATV kits. Customize your lift to match your specific vehicle types and service needs.
What’s Included
- 6000TLX Left & Right Frame Assemblies
- Hydraulic Power Unit with Pendant Control
- 4x Medium Rubber Lift Blocks (2″)
- 4x Tall Rubber Lift Blocks (3″)
- 2x Short Hydraulic Hoses
- 2x Long Hydraulic Hoses
- 2x Frame-Positioning Handles
- Fittings, Thread Tape, & Setup Instructions
Specifications
Specifications
| Specification | Details |
| Lifting Capacity | 6,000 lbs. (2,722 kg) |
| Lowered Height | 3.0″ (76 mm) |
| Max Lifting Height | 24″ (610 mm) |
| Lift Time | 30 seconds |
| Frame Length | 76″ (1,930 mm) |
| Frame Width | 11″ (279 mm) |
| Weight (each frame) | 81 lbs. (37 kg) |
Lift Point Spread & Clearance
| Specification | Details |
| Max Lift Point Spread | 66″ (1,676 mm) |
| Min Lift Point Spread | 43″ (1,092 mm) |
Power & Safety Features
| Specification | Details |
| Power Options | 110V AC / 220V AC |
| Hydraulic Power Unit Weight | 15 lbs. (7 kg) |
| Safety Lock Positions | 2 (Mid-Rise & Full-Rise) |
| Automatic Safety Locks | Yes |
7000TL Portable Car Lift System
With a lifting capacity of 7,000 lbs, / 3,175 kg. this model is the go-to choice for those who need to lift larger, more substantial vehicles safely and efficiently.
QuickJack 7000TL is the only portable truck lift capable of getting trucks and SUV tires completely off the ground. With the addition of the optional ‘Light Truck / SUV Adapter Kit’, the 7000TL has an incredible 27″ lifting height. 7000TL is the highly-anticipated sequel to the most popular automotive tool to ever hit the home garage or auto repair shop, providing more room to tackle every repair and maintenance task on vehicles, trucks, and SUVs weighing up to 7,000 lbs, / 3,175 kg.
Specifications
| Lifting capacity |
|
|---|---|
| Lowered height |
|
| Lifting height |
|
| Lift point spread |
|
| Frame dimensions (ea.) |
|
| Other specs |
|
8000TL Portable Truck & SUV Lift System
Engineered with a completely redesigned electric/hydraulic power unit, the 8000TL ensures both frames rise and lower in perfect unison thanks to its pressure-compensated flow divider and independent shut-off solenoids. Reinforced cross members, improved weld geometry, and upgraded pivot joints provide added strength and rigidity for consistent performance under load. All of this power still fits in a compact 3.5-inch collapsed profile, maintaining the versatility and portability QuickJack is known for.
Whether you’re a DIYer with a heavy-duty weekend project or a professional tech working in tight shop conditions, the 8000TL delivers the muscle and mobility to get the job done without compromise.
What’s improved on the NEW TL Models vs. previous TL Models?
The 8000TL offers a 1,000-lb. capacity increase over the 7000TL and includes major upgrades to the hydraulic system and structural components. Despite the extra power, it retains the low-profile 3.5-inch collapsed height for easy storage and use in compact spaces. The minimum lift point spread remains at 37″, with the frame length set at 70.75″.
What warranty coverage is included?
Features
Automatic safety locks
The 8000TL includes dual-position automatic safety locks that engage securely as the frames rise, locking in at both mid-rise and full-rise heights. To release, simply flip the lock bar for a safe, controlled descentno pin setting or guesswork required.
Heavy-duty lifting power
With a rated 8,000-lb. capacity and 24.25-inch lift height, the 8000TL is built to handle larger vehicles, including SUVs and light-duty trucks. It’s the most powerful standard-length portable lift in the QuickJack lineup, giving you extra strength without added bulk.
Upgraded hydraulic system
The redesigned power unit features a pressure-compensated flow divider and independent shut-off solenoids. These ensure both frames lift in perfect unison and remain balanced even if you stop mid-cycle – critical for heavier vehicles.
Stronger frame, smarter design
Thicker cross members, improved welds, and reinforced pivot points enhance the overall rigidity of the lift structure. These structural upgrades reduce flex, improve alignment, and ensure long-term durability under repeated use.
One-handed pendant control
QuickJack’s pendant-style controller allows you to raise and lower the lift with one hand—no manual effort, no cranking. Keep your other hand free to guide vehicle positioning or perform quick checks during lifting.
Factory preassembled hydraulics
Each 8000TL arrives with its hydraulic system fully preassembled at the factory. That means faster setup, no complex connections, and guaranteed performance right out of the box. Just plug in and lift.
Portable and easy to store
Despite its added strength, the 8000TL still lowers to a slim 3.5-inch profile. Integrated urethane wheels let you roll the lift around your garage or shop effortlessly, making storage a breeze between uses.
Accessories to increase versatility
The 8000TL is compatible with a wide range of QuickJack accessories, including SUV/truck adapters, pinch-weld blocks, and frame extensions. Customize your lift setup to match your garage, vehicle, and job requirements.
What’s Included
- 8000TL Left & Right Frame Assemblies
- Hydraulic Power Unit with Pendant Control
- 4x Medium Rubber Lift Blocks (2″)
- 4x Tall Rubber Lift Blocks (3″)
- 2x Short Hydraulic Hoses
- 2x Long Hydraulic Hoses
- 2x Frame-Positioning Handles
- Fittings, Thread Tape, & Setup Instructions
Specifications
Specifications
| Specification | Details |
| Lifting Capacity | 8,000 lbs. (3,629 kg) |
| Lowered Height | 3.5″ (89 mm) |
| Max Lifting Height | 24.5″ (622 mm) |
| Lift Time | 30 seconds |
| Frame Length | 70.75″ (1,797 mm) |
| Frame Width | 12.5″ (318 mm) |
| Weight (each frame) | 100 lbs. (45 kg) |
Lift Point Spread & Clearance
| Specification | Details |
| Max Lift Point Spread | 60″ (1,524 mm) |
| Min Lift Point Spread | 37″ (940 mm) |
Power & Safety Features
| Specification | Details |
| Power Options | 110V AC / 220V AC |
| Hydraulic Power Unit Weight | 15 lbs. (7 kg) |
| Safety Lock Positions | 2 (Mid-Rise & Full-Rise) |
| Automatic Safety Locks | Yes |
8000TLX Extended-Length Portable Truck and SUV Lift
The QuickJack 8000TLX is the highest-capacity, extended-length portable lift in our lineup – engineered specifically for heavy-duty trucks, SUVs, and long-wheelbase vehicles. With an 8,000-lb. capacity and a 66-inch lift point reach, it handles the jobs that standard car lifts can’t touch. Built tough, yet fully collapsible, this portable truck lift gives you full access beneath your vehicle without the footprint of a permanent setup.
Despite its size, the 8000TLX still reaches max rise in about 30 seconds, and its low 3.5-inch collapsed height means it fits under most sedans and sports cars too. Add the optional Truck & SUV Adapter Kit for even more undercarriage access on higher-clearance vehicles. Upgrades include a pressure-compensated flow divider for synchronized lifting, reinforced frame geometry, and a factory preassembled hydraulic system. All these improvements ensure faster setup, smoother operation, and maximum durability in the shop or at home.
The 76-inch frames are designed for serious reach but remain compact enough to roll and stow easily using QuickJack’s built-in urethane wheels. Take it anywhere – garage, driveway, shop, or even off-site – as long as you’ve got a flat surface to work on.
Extended-length design and lift point specs
The 8000TLX was engineered to accommodate long-wheelbase vehicles with lift points that exceed standard lengths. Its frame and lift point spread are 6 inches longer than TL models, so be sure to measure before purchasing for shorter vehicles. TL minimum lift point spread: 37″TLX minimum lift point spread: 43″TL maximum lift point spread: 60″TLX maximum lift point spread: 66″TL overall frame length: 70″TLX overall frame length: 76″
What’s different about the NEW TLX Models?
The 8000TLX delivers a full 1,000-lb. boost in capacity over the 7000TLX and includes the latest QuickJack upgrades: reinforced structural components, an upgraded hydraulic system, and a safer, more stable lift cycle. Best of all, it still folds to just 3.5 inches for easy storage and portability.
Warranty coverage
Features
Factory preassembled hydraulics
Each 8000TLX ships with its hydraulic system preassembled at the factory, saving time during setup and ensuring flawless performance right out of the box. You’ll be lifting faster with fewer steps and no guesswork.
Automatic safety locks
The 8000TLX includes dual-position automatic safety locks that engage securely as the frames lift. Locks automatically slide into place at both mid-rise and full-rise positions, and a simple flip of the lock bar releases them for smooth, controlled descent.
Extended-length power & clearance
Built for long-wheelbase vehicles, the 8000TLX features a 76-inch frame and 66-inch max lift point spread. With an 8,000-lb. capacity and 24.5-inch lift height, it’s the ideal portable lift for large SUVs, trucks, and specialty sedans with extended chassis requirements.
Upgraded hydraulic system
Our reengineered hydraulic power unit includes a pressure-compensated flow divider and independent shut-off solenoids to ensure both frames rise and lower in perfect sync—critical for heavier vehicles and added safety during operation.
Stronger frame, greater stability
The 8000TLX is built with thicker cross members, improved weld geometry, and enhanced pivot joints that resist flex under heavy load. These structural upgrades give you greater confidence, especially when lifting heavier or longer vehicles.
One-handed pendant operation
The simple pendant control lets you operate the lift with one hand, keeping your other hand free for guiding the frames or handling basic tasks. QuickJack lifts with the push of a button—no bending, cranking, or manual intervention.
Compact footprint, extended utility
Despite its reach and capacity, the 8000TLX still lowers to a 3.5-inch profile and rolls easily on built-in urethane wheels. It’s the perfect mobile solution for shops or home garages where versatility and space matter.
Accessories to increase versatility
The 8000TLX works with a wide range of QuickJack accessories, including truck and SUV adapters, pinch-weld blocks, and frame extensions. Configure your lift setup to meet your exact needs.
What’s Included
- 8000TL Left & Right Frame Assemblies
- Hydraulic Power Unit with Pendant Control
- 4x Medium Rubber Lift Blocks (2″)
- 4x Tall Rubber Lift Blocks (3″)
- 2x Short Hydraulic Hoses
- 2x Long Hydraulic Hoses
- 2x Frame-Positioning Handles
- Fittings, Thread Tape, & Setup Instructions
Specifications
| Specification | Details |
| Lifting Capacity | 8,000 lbs. (3,629 kg) |
| Lowered Height | 3.5″ (89 mm) |
| Max Lifting Height | 24.5″ (622 mm) |
| Lift Time | 30 seconds |
| Frame Length | 76.0″ (1,930 mm) |
| Frame Width | 12.5″ (318 mm) |
| Weight (each frame) | 103 lbs. (47 kg) |
Lift Point Spread & Clearance
| Specification | Details |
| Max Lift Point Spread | 66″ (1,676 mm) |
| Min Lift Point Spread | 43″ (1,092 mm) |
Power & Safety Features
| Specification | Details |
| Power Options | 110V AC / 220V AC |
| Hydraulic Power Unit Weight | 15 lbs. (7 kg) |
| Safety Lock Positions | 2 (Mid-Rise & Full-Rise) |
| Automatic Safety Locks | Yes |
