ACCESSORIES

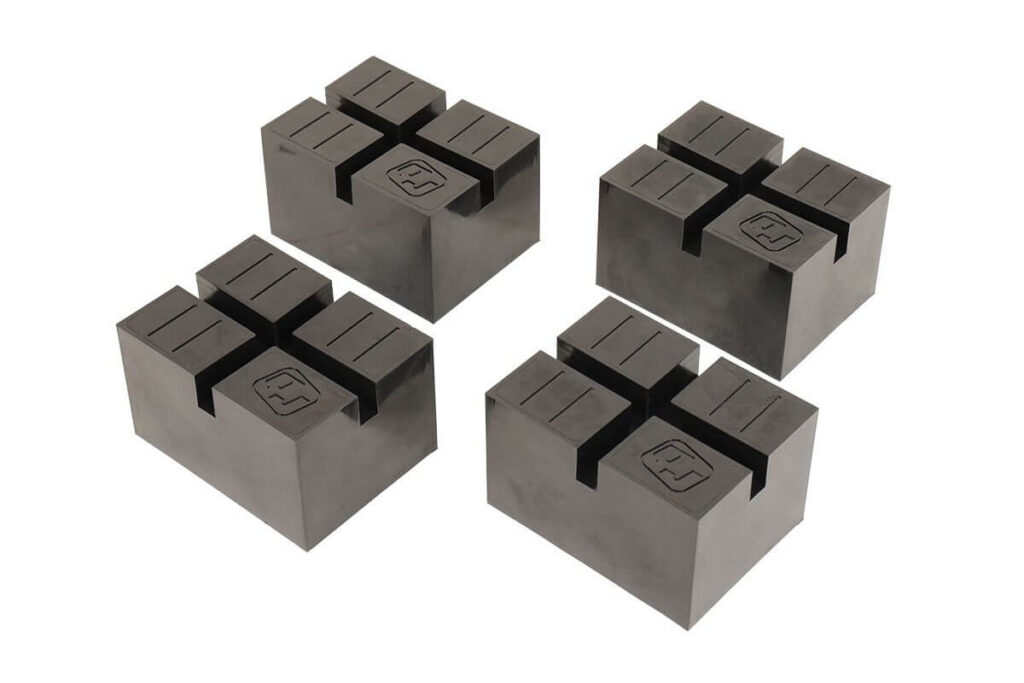

PINCH-WELD BLOCKS

Supporting cars on pinch-weld rails creates excessive pressure points which can gouge or tear the standard rubber blocks and damage delicate body rails on unibody vehicles. QuickJack’s urethane rubber pinch-weld blocks were engineered with a cross-cut slotted design, allowing you to position them lengthwise or crosswise. They’re the perfect body cradling tool to safely support rocker panels or sheet metal body rails, especially pinch-weld rails that have degraded over time due to corrosion from grime and road salt.

Ensure a longer lifespan for your lift blocks with QuickJack’s specially designed pinch-weld jack pads. These blocks are taller than our standard rubber blocks and can be placed independently in the lift block trays. They can also be stacked by placing a pinch-weld block on top of a small standard block. (The pinch-weld and tall standard blocks should not be stacked.) Stop using wood blocks, hockey pucks and towels that can slip or tear, resulting in vehicle damage, or worse, unstable lifting. Durable urethane rubber is impermeable to oil, grease and gas and will last for many years of simple, maintenance-free lifting.

Features

• Specially formulated urethane rubber
• Bilateral deep slots accommodate virtually all pinch weld frames
• Position lengthwise or crosswise
• Water/Chemical resistant and 100% weatherproof
• Single-piece construction for superior hold
• Sold in sets of 4

A – Length	4″ (102 mm)
B – Width	3″ (76 mm)
C – Height	3″ (76 mm)
D – Pinch-weld width	0.4″ (10 mm)
E – Pinch-weld depth	0.5″ (13 mm)

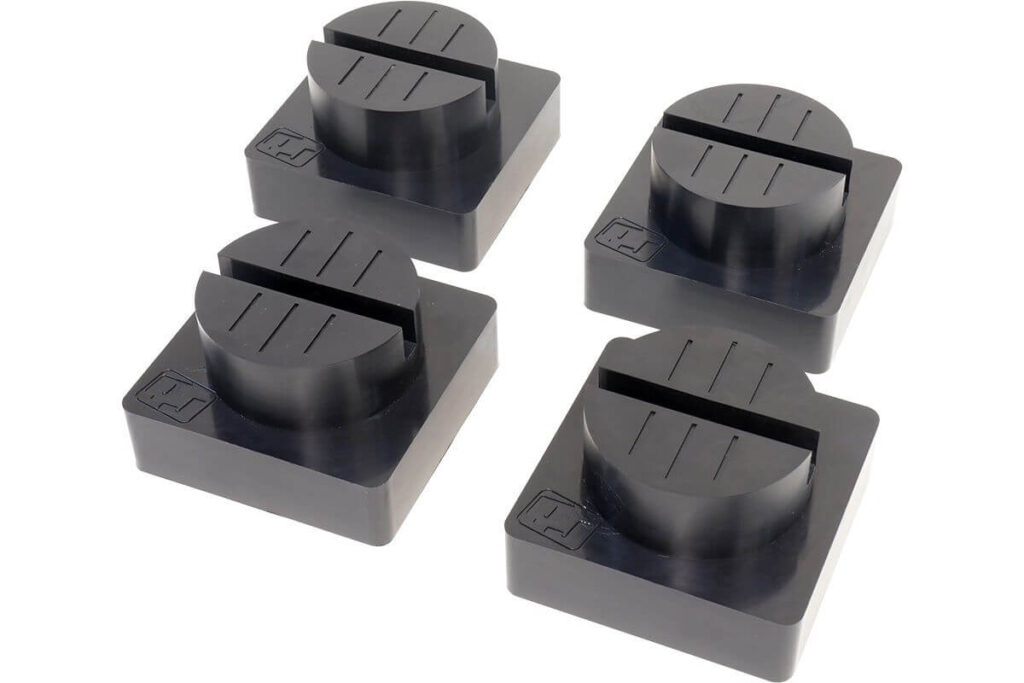

PINCH-WELD PUCKS

Made of a urethane rubber material, round pinch-weld pucks are the perfect match for pinch-weld rails with difficult lifting points. No matter how much material is surrounding your lifting point, the round puck-like design of these lifting pads will safely secure your car, while protecting both your pinch-weld and the surrounding material.

Over time normal lifting pads can sustain damage on unibody cars with a pinch-weld rail access point, and can even cause slight damage to the rail. Because of their unique construction, heavy-duty pinch-weld contact pads are the ideal solution to any trade-show cars or exotics with a unibody construction. Our square pinch-weld block accessories are perfect for dealing with unibody frames, but their design could possibly harm any material that is closely surrounding your pinch-weld lifting point. Round pinch-weld pads allow you secure your lifting point without infringing on any nearby material.

Made from a durable urethane rubber, round pinch-weld pads fit securely in the lifting tray for every QuickJack model and are resistant to both liquid and physical damage. As you are lifting, the round slotted pucks hold your pinch-weld firmly in place, protecting your undercarriage and eliminating any risk of slippage. With so much riding on such a small surface area you need to be sure that you have the best tools for the job. Round pinch-weld pucks will provide you with peace of mind for both your safety and the safety of your car.

• Specially formulated urethane rubber
• Deep opening eliminates chance of slippage
• Round puck pad secures difficult pinch-weld rails without risk of damage
• Water/Chemical resistant and 100% weatherproof
• Single-piece construction for superior hold

Specifications

A – Height	2.5” (60 mm)
B – Width	4” (100 mm)
C – Height of puck	1.25” (30 mm)
Puck diameter	3” (76 mm)
Pinch-weld depth	0.6″ (16 mm)
Pinch-weld width	0.4″ (10 mm)

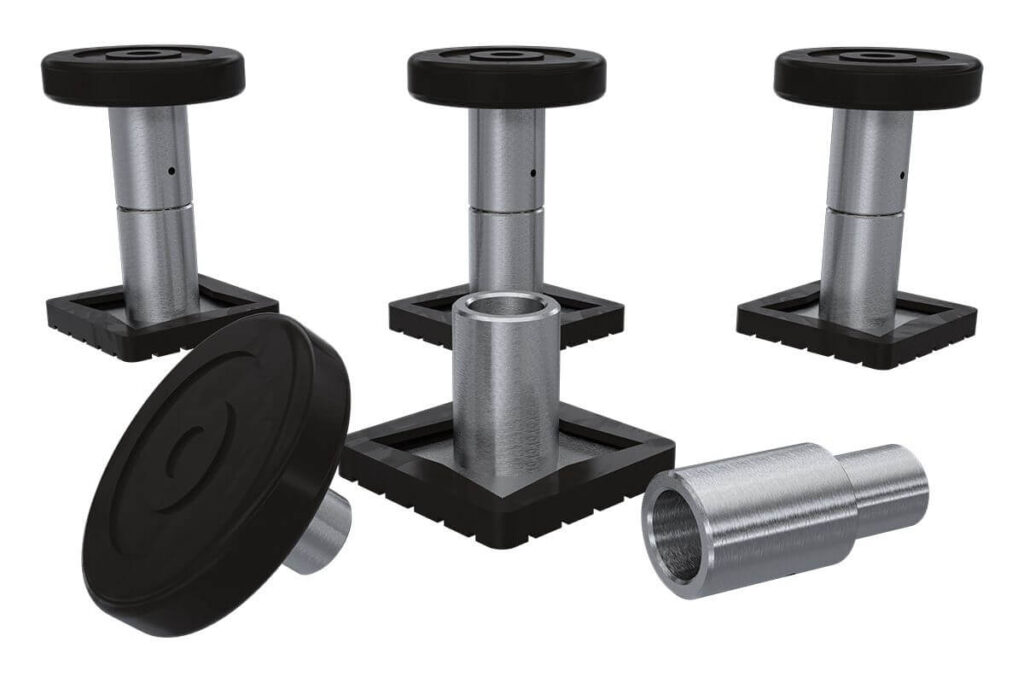

SUV / TRUCK ADAPTOR KIT

Most SUVs and trucks require adapter sets for maintenance. Your portable car lift system is capable of reaching the undercarriage of virtually every vehicle that does not exceed the unit’s lift capacity. Best of all, while using SUV and truck adapters, QuickJack remains perfectly stable and secure at all times.

Take your garage lift to its max extension with as much ease as you would a Mustang or Ferrari. And if you do have a smaller vehicle to work under, it’s easy to replace the adapter set with QuickJack’s conventional stackable rubber blocks takes in no time at all. Just swap them out in the block tray and you’re done!

To support your heavy vehicles, a rugged, cross-textured base pad sits securely in the QuickJack block tray, supporting the same stackable adapters and rounded lift pad that you might see on any frame-engaging car lift. Incredible stability underlines our truck adapter design, maximizing your overall safety. To this end, QuickJack remains CE Certified when the truck adapter set is in use, which means you can enjoy a garage lift that’s truly portable and perfectly suited for light trucks and SUVs.

Why isn’t the SUV & Truck Adapters Set compatible with the 3500SLX?

While QuickJack’s truck adapters will technically fit in the lifting trays of every model, high-stance trucks and SUVs will weigh over 3,500 lbs. This makes them unsuitable for use with the 3500SLX. Plus, the 3500SLX features a shorter frame that most likely wouldn’t provide adequate balance for longer wheelbases.

We recommend the 7,000-lb capacity 7000TL  or  7000TLX for heavy-duty lifting applications.

• Features removable stacking pin
• Gain additional 6″ lifting height
• High-quality, rugged lifting Tuf-Pads™ by BendPak provide exceptional grip
• Fast assembly/disassembly & transport
• Set of (4) takes up minimal space for easy storage
• Fits all QuickJack portable car lift models (except 3500SLX)

Specifications

A – Overall height	7.2″ (183 mm)
B – Pad height	1″ (25 mm)
C – Pin height	2.8″ (71 mm)
D – Base height	3.4″ (86 mm)
Shipping dimensions	10″ x 10″ x 6″ (254 x 254 x 152 mm)
Shipping weight	32-lbs. (15 kg)

What’s Inside?

• 4x Low‐profile round polyurethane contact pads
• 4x Sliding receivers that accommodate the round polyurethane contact pads and/or the stackable adapters
• 4x Stackable adapters (3″)

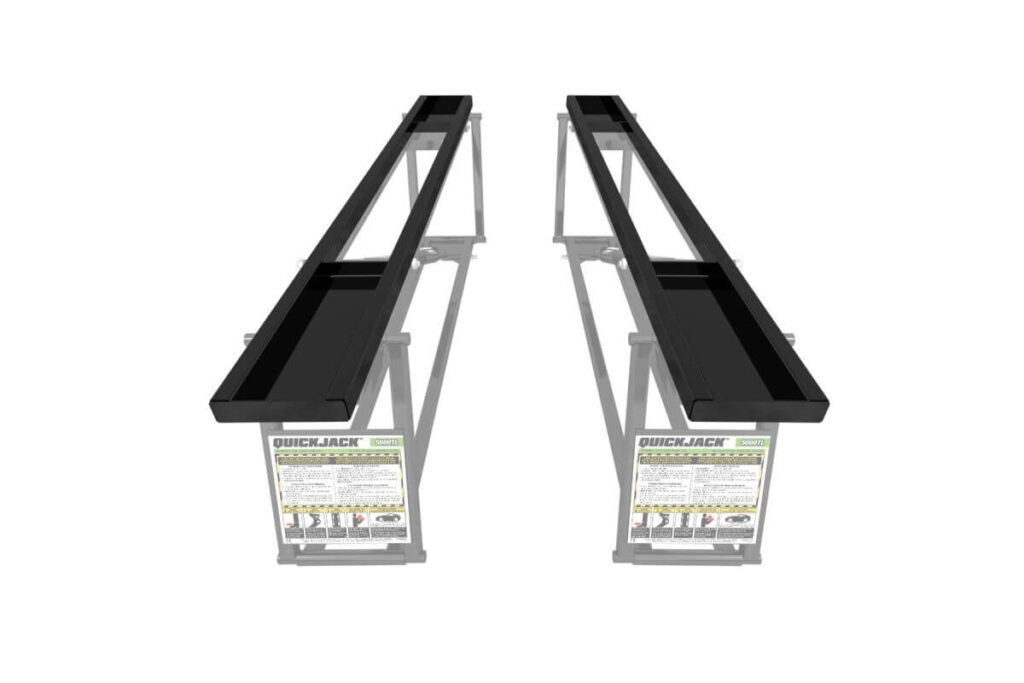

FRAME EXTENSION SET

Instantly increase QuickJack’s versatility

When you own multiple vehicles, you probably use each one for a different purpose. There’s your daily driver, your racer, your hotrod, your truck, etc. QuickJack is an extremely versatile car lift, but QuickJack’s standard, 60″ lift point spread won’t cover everything.

With this new QuickJack accessory, you will now be able to accommodate OEM jack points that are spread farther apart than the current TL and SLX models allow. These easy-to-use extensions make it convenient and safe to gain up to 6″ of extra reach and 1.5″ of extra lifting height. It’s just as easy to remove and return your TL or older SLX to its regular state. This is the ideal QuickJack accessory for anyone with multiple vehicles and a variance of chassis measurements.

A perfect fit

The frame extension adapters drop snugly into QuickJack’s lift trays. There’s no guesswork as to how the adapter fits on the frame: rugged, welded, tubular steel standoffs (found on the bottom of each adapter), slide perfectly against the edges of QuickJack’s rubber block trays. At just 32.5 lbs. each, the adapters are lightweight enough to pick up and carry. Once the extenders are in place, set QuickJack’s rubber blocks in the trays just as you would when using frames alone.

CAUTION: While the adapters are designed to be snug and secure in the lift tray, they are not meant to serve as a handles when rolling the QuickJack around. DO NOT attempt to roll your QuickJack frames with extensions in place.

• (2) Frame extension adapters with 66″ lift point spread each
• Rugged 14-gauge steel construction
• Welded tubular steel standoffs for lift tray placement
• Easy to carry
• Fits 5000TL  and  7000TL models
• Fits the BL-5000SLX  and  BL-7000SLX models

Specifications

A – Length	66.25″ (1,683 mm)
B – Frame rail height	1″ (25 mm)
C – Lowered height (attached)	4.5″ (114 mm)
D – Max. lift point spread	66″ (1,676 mm)
E – Min. lift point spread	37.5″ (953 mm)
F – Width	7.5″ (191 mm)

What’s Inside?

2x TL frame extension adapters

ERGO CHAIR (Ergo-RS)

All About Ergochair ERGO-RS

The Ergo-RS adjustable-height rolling work seat makes performing awkward work tasks ergonomically easier and safer for those who need to lie down, bend or contort their body to perform repetitious work duties, especially car and airplane mechanics, heavy-equipment technicians and factory and assembly line workers. The Ergochair (Ergo-RS) works both as a chair and creeper featuring four swivel caster wheels that ensure stability and a full range of mobility. The Ergochair (Ergo-RS) can move smoothly in all positions whether raised, reclined or lowered greatly relieving the stress on your back and other parts of your body while working.

Reduces Fatigue

Good ergonomics ensure that you can work comfortably which increases productivity and efficiency and reduces fatigue. The Ergo-RS is a purposefully made adjustable height rolling work seat that prevents back and neck pain and minimizes awkward positioning which helps you to perform the tasks at hand with ease while maintaining good posture.

The Ergo-RS, with an adjustable seat height and backrest that adjusts up, down, back and front, allows you to move more comfortably throughout the day keeping your body and mind fresh and focused. Leading companies understand that investments in employee wellness which includes ergonomic engineering reap productivity benefits. Regardless of size, the Ergo-RS can be a worthwhile investment for all organizations.
